Manage a master list of room types.

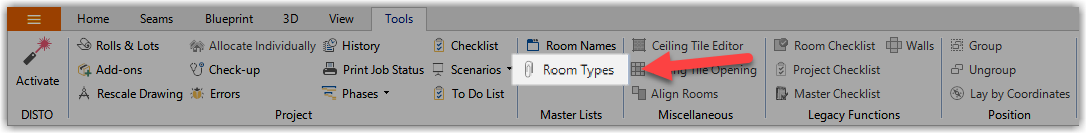

Each predefined room name can be flagged as a particular type of room. Room types dictate how many t-, length, and butt seams are allowed per room. Click "Room Types" under the Tools tab to manage them.

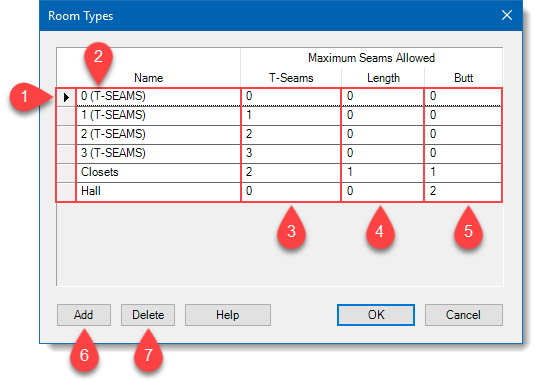

Room Types Window
|
1. Select Line
Click the grey box next to a line to select it. Click and drag up or down to select multiple lines.
|
|
2. Type Name
Click within a text field to edit a room type's name.
|
|
3. Maximum Allowed T-Seams
Click within a text field in this column and enter the maximum number of t-seams allowed in each room a particular type.
|
|
4. Maximum Allowed Length Seams
Click within a text field in this column and enter the maximum number of length seams allowed in each room a particular type.
|
|
5. Maximum Allowed Butt Seams
Click within a text field in this column and enter the maximum number of butt seams allowed in each room a particular type.
|
|
6. Add Room Type
Add a new, blank name line to the list. Newly added lines must have a unique name entered.
|
|
7. Delete Room Type
Delete the currently selected line(s).
|
