User Settings: Drawing

User specific Drawing Settings.

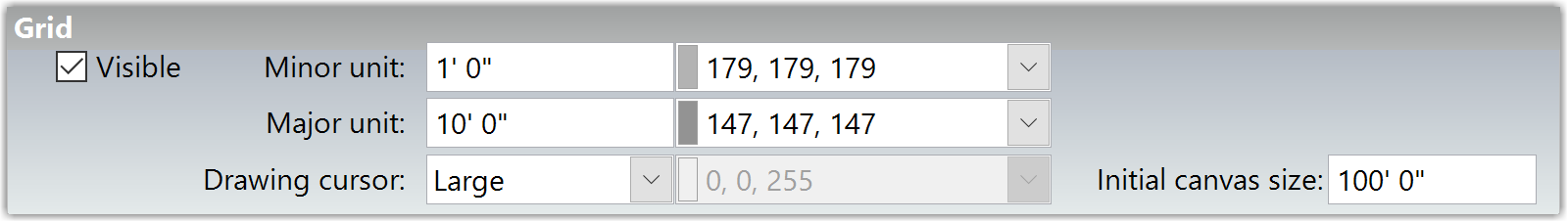

Drawing Area Grid Settings


  • Visible: Toggle grid visibility.
  • Minor Unit/Major Unit: The minor and major unit lengths of the grid can adjusted as well as their color.
  • Drawing Cursor: The drop-down box allows you to change the size and shape of the drawing cursor based on preset options. If the "Full Screen" cursor option is selected, then the option for a color preference will become editable.
  • Initial Canvas Size: The size of the initial drawing area when starting a new project. As the project grows the canvas will expand as needed.

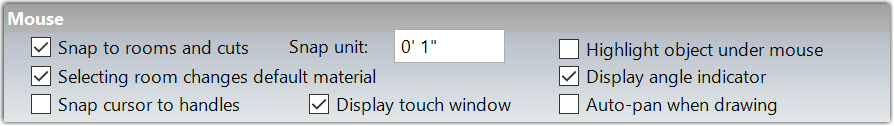

Mouse Settings


  • Snap to Rooms and Cuts: Toggles the appearance of green guidelines that appear when aligning rooms or cuts.
  • Snap Unit: When drawing a room with the mouse, this is the snapping increment that will be used if the Snap to Grid box is checked.
  • Selecting Room Changes Default Material: If a default material has been specified under General Project Settings, then the product selector will revert back to that product when no rooms are selected. If the box is unchecked the selector will not revert to the default product but will instead retain the product used in the most recently selected room.
  • Snap Cursor to Handles: Cursor will lock on to handles of rooms.
  • Display Touch Window: Option when using certain touch-screen devices to have the touch draw window appear automatically while drawing.
  • Highlight Object Under Mouse:  Rooms and objects on the drawing screen will appear highlighted when the mouse cursor is on them. The color of the highlight can be changed under User Settings: Display
  • Display Angle Indicator: Toggle the display of an angle indicator when drawing freehand with the mouse.
  • Auto-pan When Drawing: The screen will automatically pan to allow you to keep what you are drawing within view.

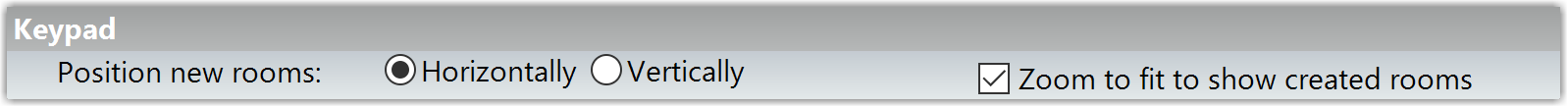

On Screen Keypad Settings


  • Position New Rooms: New rooms drawn with the keypad will be positioned either horizontally or vertically in relation to existing rooms.
  • Zoom to Fit to Show Created Rooms: When using the keypad to draw rooms the screen will automatically zoom to fit all rooms within view.

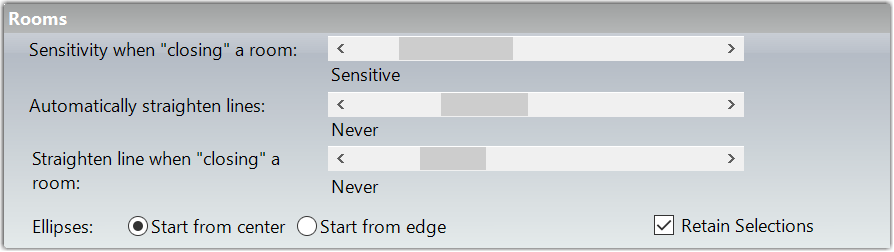

Rooms Drawing Settings


  • Sensitivity when "Closing" a Room: Adjust the precision needed when placing the last point to close a room.
  • Automatically Straighten Lines: Adjust the sensitivity of snapping to 45 degree increments when using the Polygon drawing tool.
  • Straighten Line When "Closing" a Room: When using the Close Room feature Measure detects if the final side will not be square. If the slider is set to "never", then the room will not be adjusted. At higher settings this feature will adjust side lengths to ensure that the room is square.
  • Ellipses: Choose whether to draw ellipses outward from their center or starting edge
  • Retain Selections: When a new room is drawn or when a room's material is changed it will remain selected by default. Uncheck this box to toggle this setting.



  • Select whether confirmation sounds will be played when drawing in Measure.


tooltips user settings drawing.png

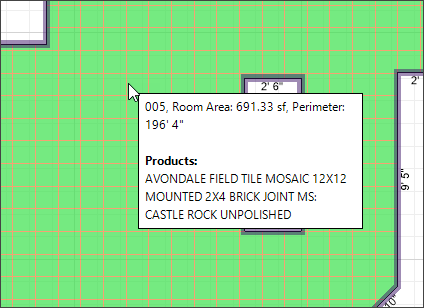

  • When hovering over a room, a summary will display the room name, area, perimeter, and products in use.
    room tooltip.png

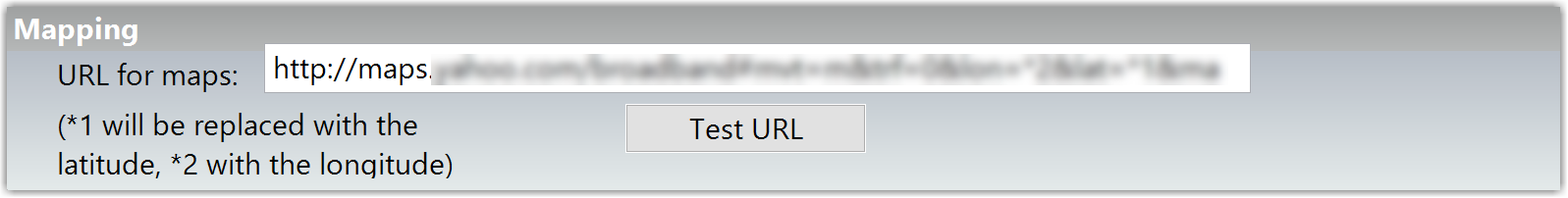

  • When drawing in Measure you can choose to use the Lay by Coordinates feature. This allows the exact latitude and longitude of the project to be established. When mapping the coordinates Measure will use the default mapping URL that is set in Measure options.
