Moving Rooms

You can select and move one or more rooms at once.


The keyboard arrow keys may be used to move a room after selected them. The distance of movement per key press is based upon the Minor Grid unit for larger steps (see File>Measure Options>User Settings>Drawing). If the SHIFT key is pressed at the same moment as the arrow key, the Snap Unit is used which allows smaller steps per key stroke which allows for more precise movement.


How To:

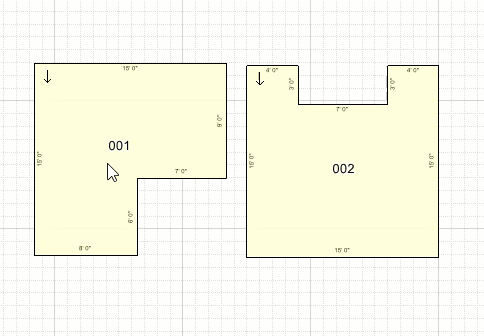

  1. Select your room or rooms.
  2. Press and hold the left mouse button and move the cursor.
  3. Release the left mouse button to "drop" the room(s) where the cursor is placed.
