Join Rooms

Join two or more rooms together into a single room.


Using an older version of Measure?

In order to join multiple rooms into one, all rooms must be touching and/or overlapping. Drag rooms into place using the Select tool and allowing Measure's green alignment guides to indicate proper placement.

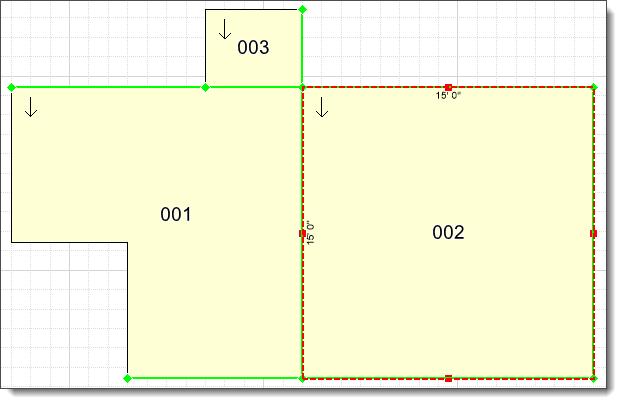

Measure will automatically generate green alignment guides to indicate when rooms are touching and/or in line with each other. This effect only occurs while dragging rooms using the mouse.

How To:

  1. Ensure all rooms that are to be joined are touching and/or overlapping.
  2. Select all rooms to be joined.

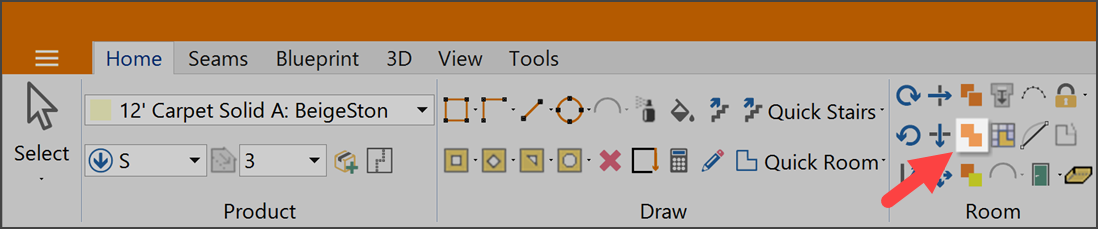

  3. Click on the Join tool.
