Flip Horizontal

Flip the selected room(s) or object(s) horizontally.

Using an older version of Measure?

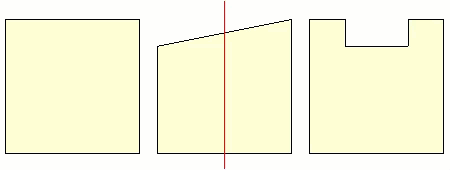

This tool requires that at least one room is selected before it becomes available. If multiple rooms are flipped at the same time, they will rotate around an invisible axis at center of the selection.

How To:

1. Select one or more rooms on the drawing.

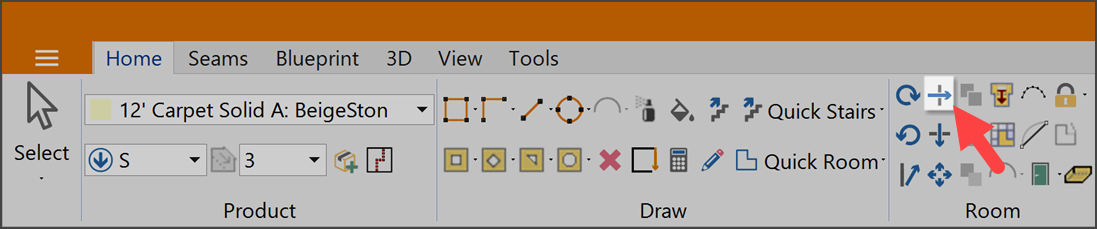

2. Click the Flip Horizontal button under the Room tab of the Ribbon Bar.
