Rotate Counterclockwise

Rotate the selected room(s) or object(s) 90 degrees counterclockwise.


Using an older version of Measure?

This tool requires that at least one room is selected before it becomes available. Each time the button is clicked the selected room(s) rotate counterclockwise by 90 degrees. If multiple rooms are selected, the rotation will take place around an invisible point at the center of the selection.


How To:

  1. Select one or more rooms on the drawing.

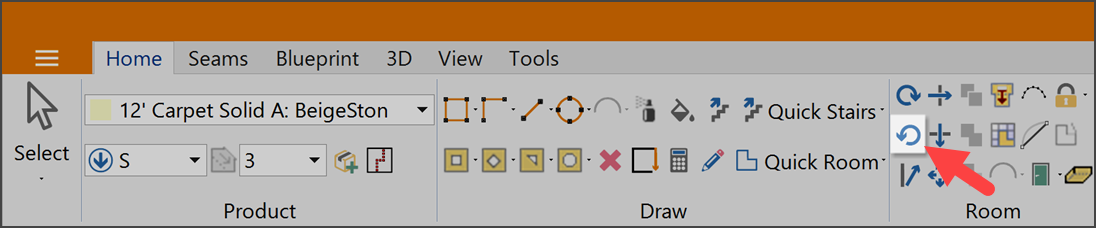

  2. Click the Rotate Counterclockwise button under the Room tab of the Ribbon Bar.
