Create Walls

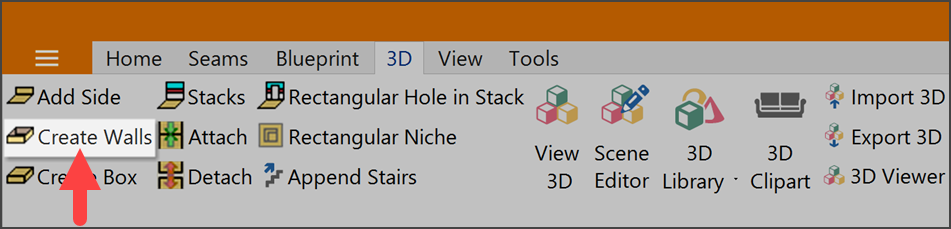

The Create Walls tool is found under the Room tab of the Ribbon Bar. It will not be available for use until one or more rooms are selected.

This tool will create wall flaps on all sides of all selected rooms. To add flaps only to specific sides, use the Add Side tool.


Using an older version of Measure?

How To:

  1. Select at least one room.
  2. Click on the Create Walls button.
  3. In the "Create Walls" dialog box that appears, define the parameters for the new wall flap(s) and then click the OK button

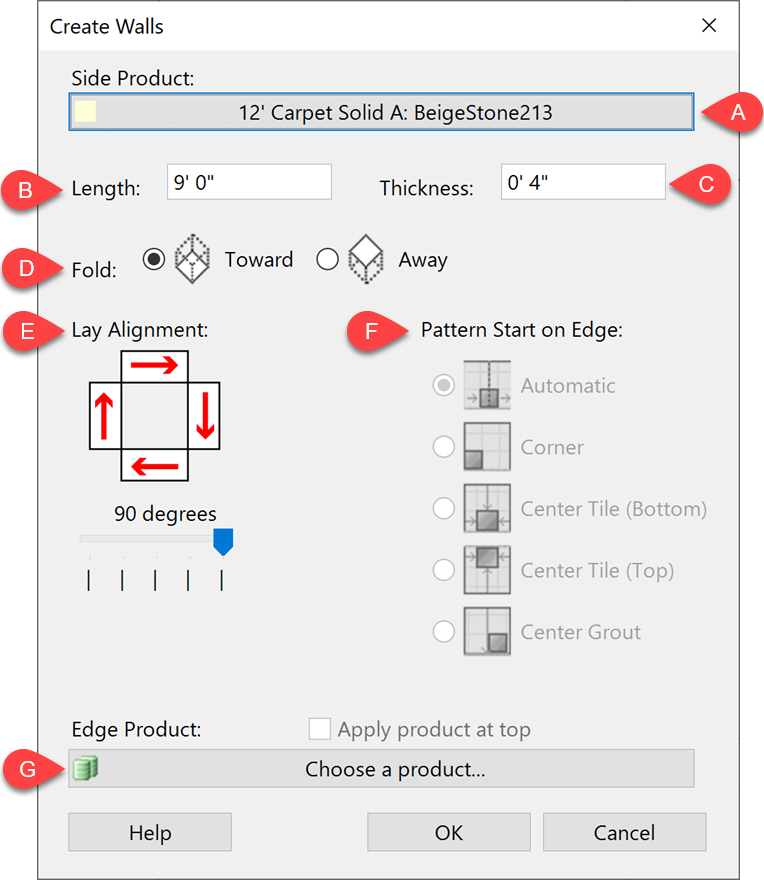

The Create Walls Dialog


A. Side Product

Click this button to open the Product Selector and choose a material for the wall flap. Only products sold by a square unit of measure will be available.

B. Length

A length for the wall flap(s) must be entered here.

C. Thickness

Enter an optional thickness for the wall flap(s). This setting only affects the way the flap is rendered in the 3D viewer and does not affect material calculation. Valid range: 0" - 2'0"

D. Fold

Radio buttons used to select a fold direction for the wall flaps. Choosing "Toward" will cause the selected room to be the floor of the box. "Away" will fold the flaps so that the room becomes the top of the box.

E. Lay Alignment

Slider used to specify a direction for the material assigned to the flap(s). Left-click and drag it to change the setting.


If you're unable to dial in the exact angle you need, left-click the slider and use the left and right arrow keys to adjust it in one degree increments.

F. Pattern Start on Edge

If a tile product is in use, select one of the options in this section to choose a start location for it. This setting operates relative to the Lay Alignment.

  • Automatic
    Measure's default tile start method. This will reflect the standard way tile is installed in the majority of cases.
  • Corner
    Start tile in the corner of the each wall flap, based on Lay Alignment.
  • Center Tile (Bottom)
    Start tile in the center of the bottom row.
  • Center Tile (Top)
    Start tile in the center of the top row.
  • Center Grout
    Place a grout line in the center of each wall flap as a start point.
G. Edge Product

Click this button to open the Product Selector and choose a material for either the top or bottom edge of the wall flap. If a tile product is selected, then a single row of tile will be allocated along the edge.


H. Apply Product on Top

If this box is left unchecked, the edge product will be applied at the bottom of the wall flap. Check this box to apply it to the top instead.
