Append Stairs

There are two ways to add stairs to a project in Measure. For a basic stairway, use the Stairs tool. For more elaborate stairs, use the Append Stairs tool.


Using an older version of Measure?

How To:

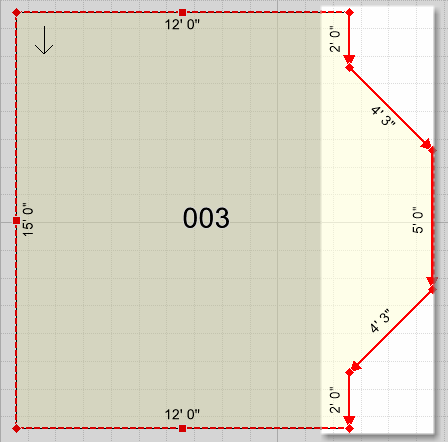

1. Select the sides of the room that you want to append stairs to.

Tip:

To select multiple sides, hold down the Ctrl button as you left-click each handle.

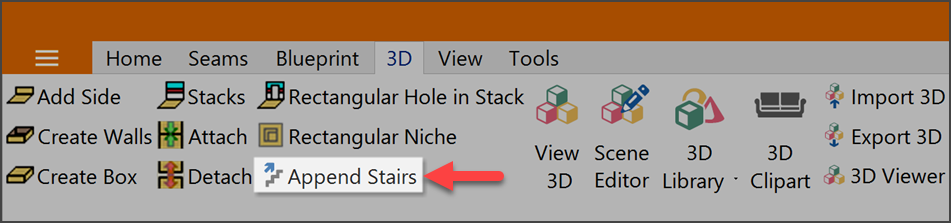

2. Select the Append Stairs tool in the 3D section of the Room tab.

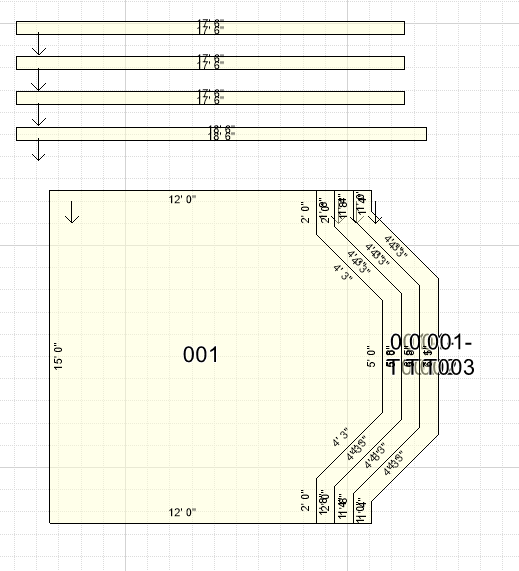

3. Stairs will be attached to the room. The risers for the stairway will be included to the side of the room. appended_stairs_and_risers_2.png
