Add Measuring Line

Use this tool to add lines to indicate the distance between two points. These resize dynamically as room position and geometry changes, and can be included on printed reports.

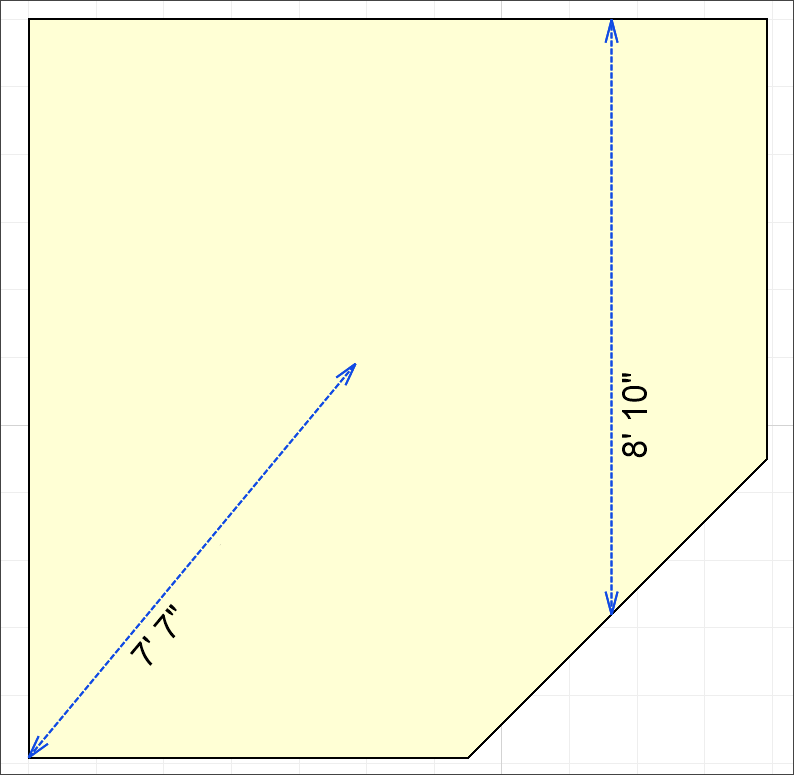

Measuring lines can be made to extend from one edge of a room to another, or to any point within a room.

measuring lines on edge and not.png

How To:

1. Select the room that you want to add a measuring line to

2. Click on the "Add Measuring Line" tool

3. Move the cursor so that the start point of the measuring line is positioned over the edge of a room or hole, then left-click.

Measurements on either side of the cursor are provided to ensure accuracy.


4. Move the cursor to another room or hole edge, then click to set the end point.


Measuring Line Options

Move a Line

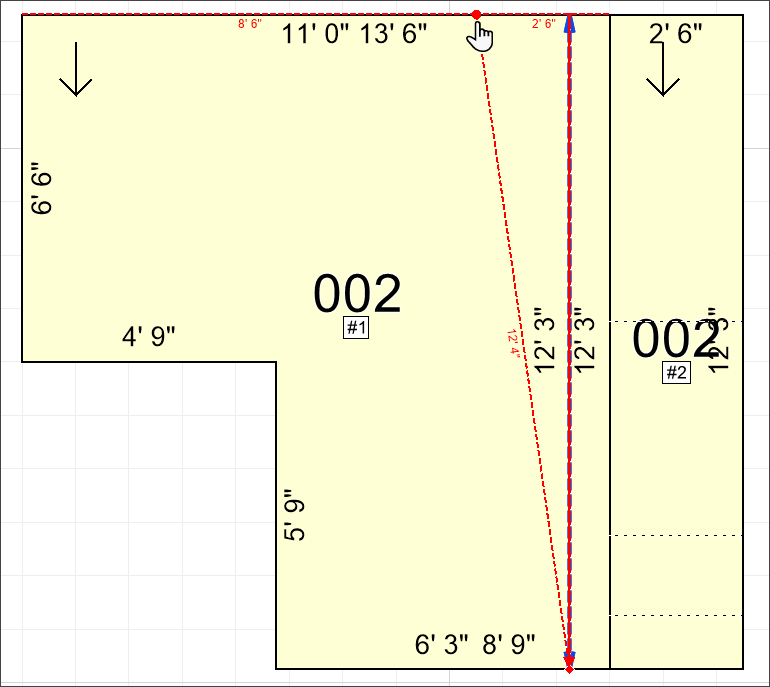

Click and drag the line to the desired location. The endpoints of a line can also be moved.

move measuring line.png move measuring line end point.png
Delete a Line
Click on the measuring line to select it, then press the Delete key.
Hide Lines

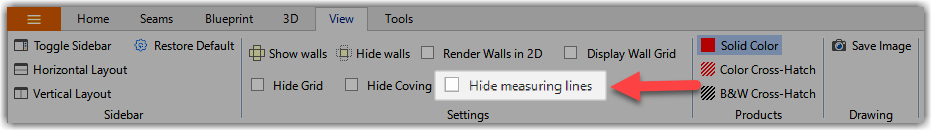

Select the View tab of the ribbon bar, then check the "Hide measuring lines" checkbox.


Change Measuring Line Appearance

Go to menu_button.png > Measure Options. Under User Settings > Display > General, click on the "Measuring Line" option. The line's color and thickness can be adjusted.



The Measuring lines will appear in the roll view.


If a measuring line spans across cuts or material areas, it will be divided amongst them.
