Linear Product Tool

The line tool is used when you need to display linear products of differing colors on a project.



How To:

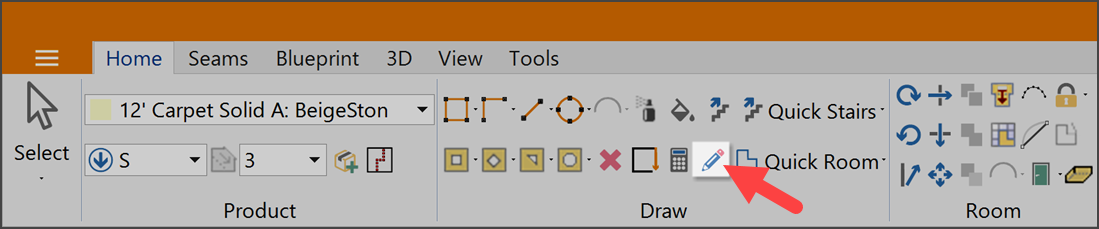

  1. Select the line tool and begin drawing around the perimeter of a room or area in which you want to place a linear product.
  2. When you are done placing lines press Ctrl+Shift+C

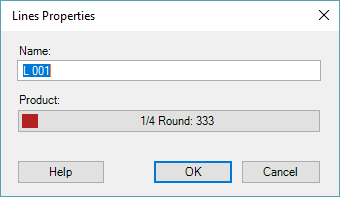

  3. The Lines Properties window will appear. From this box you will be able to name the line and assign a product.


To edit the weight of the lines drawn, go to Measure Options>User Settings>Display>General>Lines
