Crop Blueprint – Measure Flooring

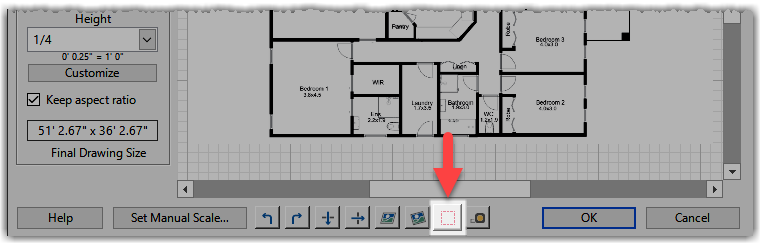

Crop a blueprint during or after the import process.

Note: The tool is only available in Measure Premier.

import crop.png

How To:

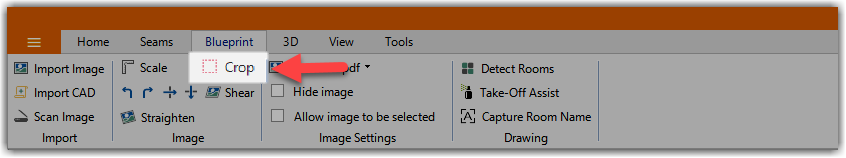

Under the Blueprint tab of the Ribbon bar, click on the Crop Graphics button in the Image group.
Click in one corner of the area that should remain after cropping.
Click in the diagonally opposite corner of the area that should remain after cropping. The areas of the imported blueprint outside of the red dotted boundary will be removed.

Tip: There will be a loss of clarity from the original size to the cropped size. The degree of loss is dependent upon how small the cropped area is. The Crop Graphic feature also works for AutoCAD files, however it is suggested that any adjustments to the layers of the CAD file should be performed before cropping.
