The Measure Desktop screen can be broken down into 6 key areas. Most of these are customizable so that you can find tune it to your needs.
This portion of the screen is the primary work space for Measure projects. The drawing tools found on the Ribbon Bar and elsewhere will be used to draw and arrange the floor plan here. This space will also be used when allocating material in Layout Mode and viewing the drawing in 3D.

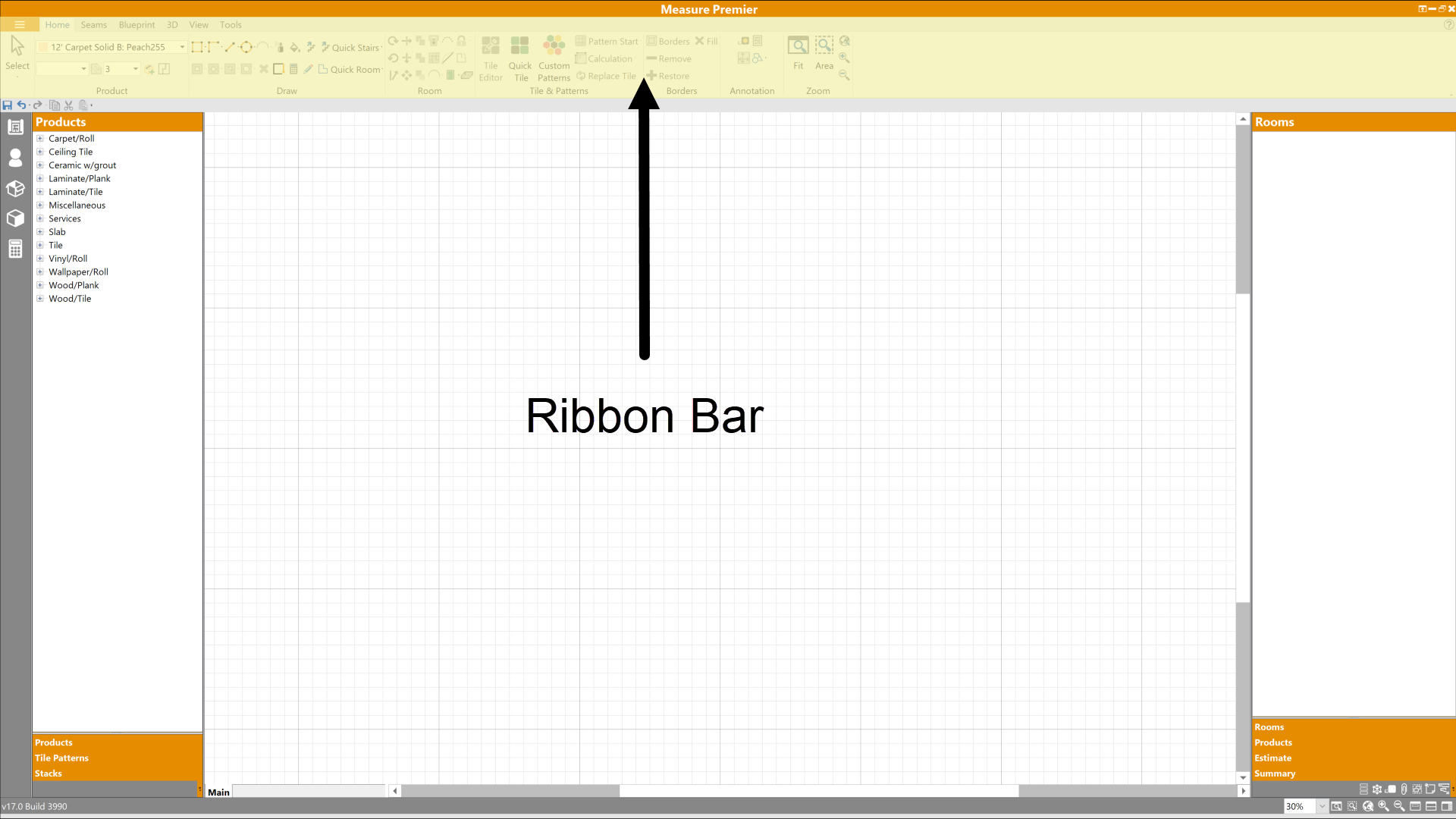

The ribbon bar contains all the tools and features necessary for creating and editing rooms in the Drawing Area. Tools are grouped together under tabs (Home, Room, etc.) based on common functionality.
Additionally, there is a File button that opens a menu from which users can save their current project, start a new project, open an existing project, print reports, and so on.
Some features in Measure generate their own Ribbon Bar tabs containing tools that are specific to the feature being used. These specialized tabs must be closed before other tools and features can be used again.

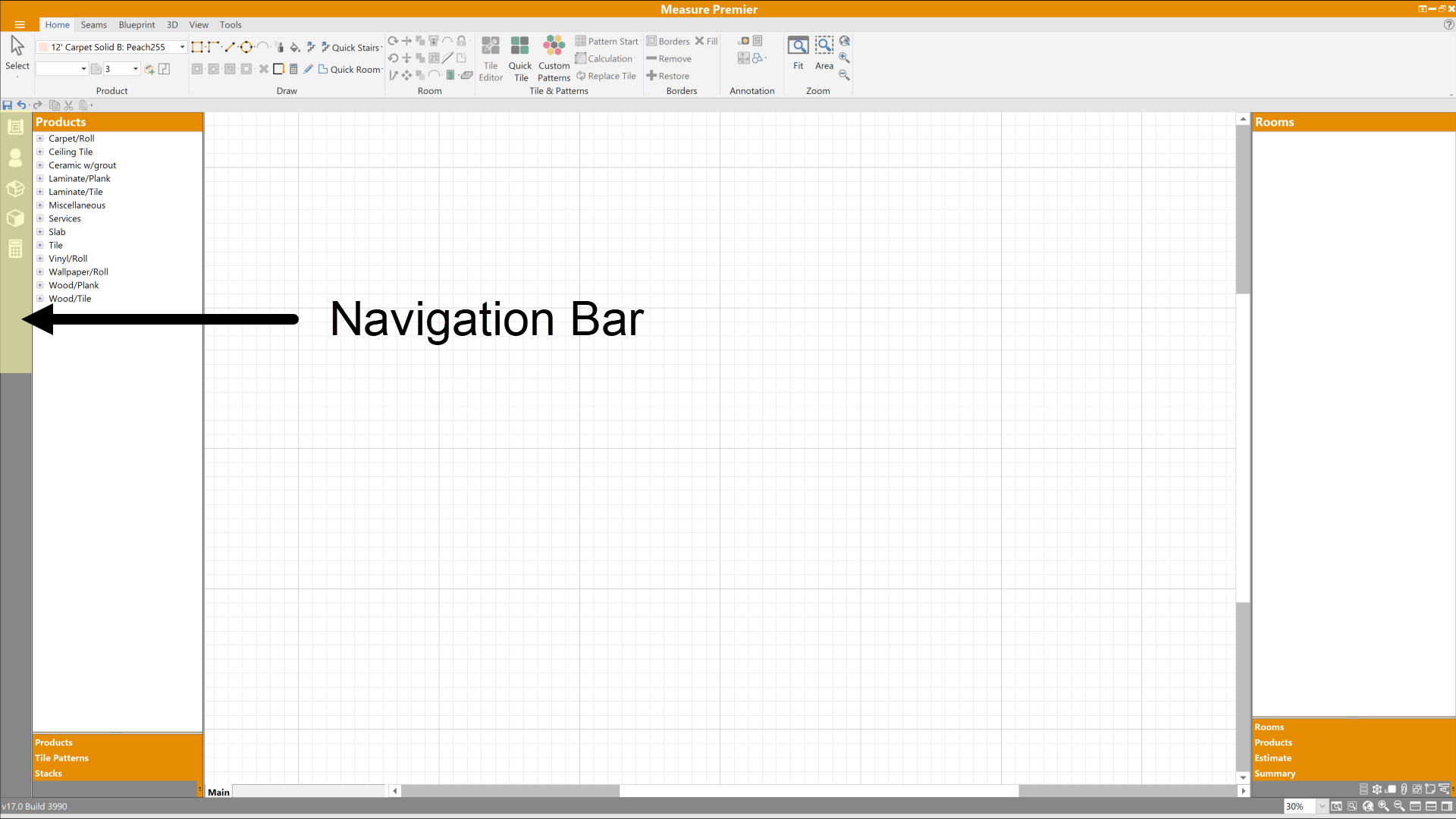

Here is where you’ll access some of the primary screens you’ll use to set up and manage your project. Import blueprints, Project information, product list, 3D viewer, and the worksheet.
This bar is customizable. By right-clicking the bar you can choose to pin, unpin, float, and dock the Navigation Bar at various locations around the screen.

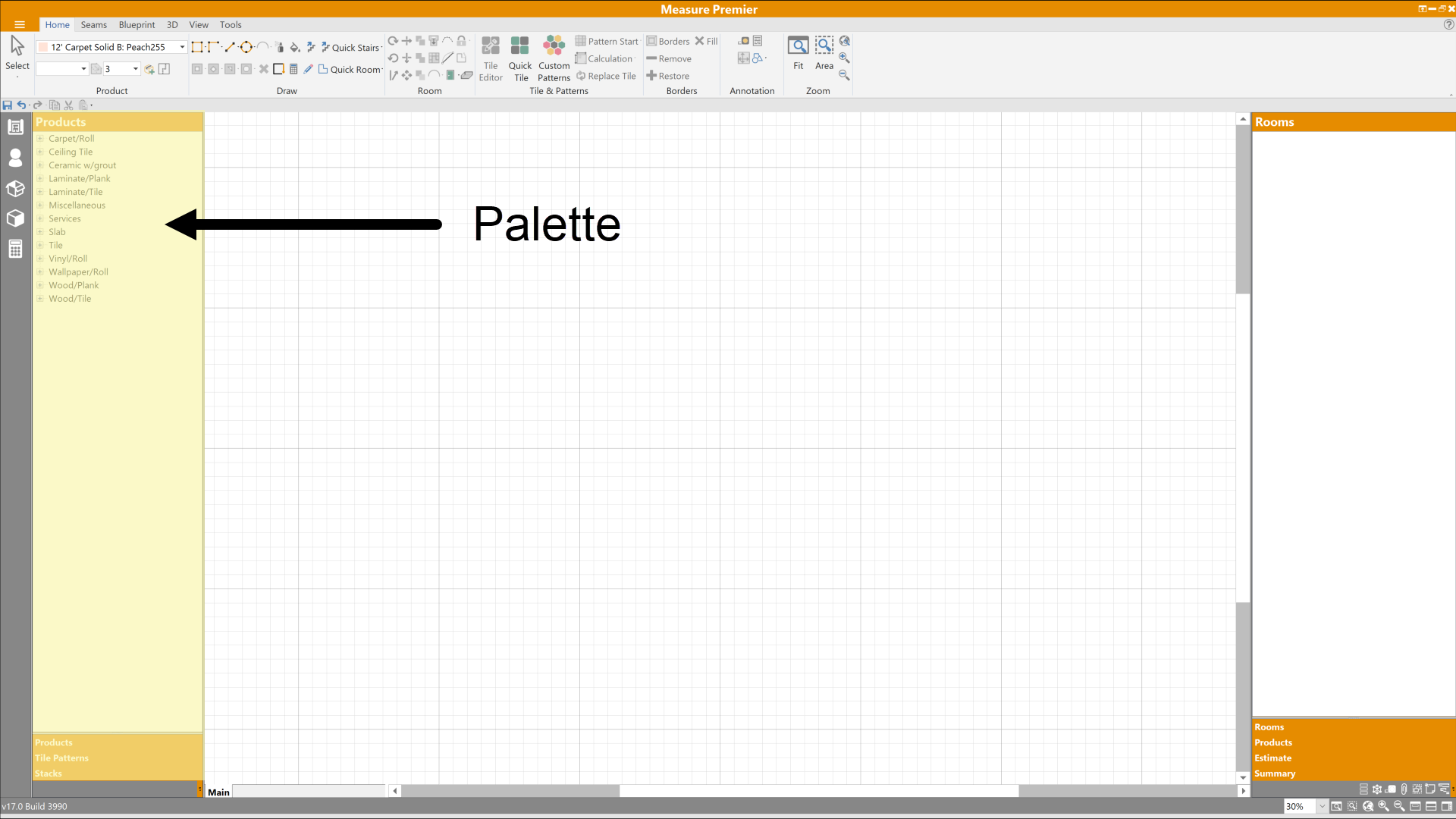

Allows you to drag and drop products, quick tile patterns, and stacks directly onto rooms.
This bar is customizable. By right-clicking the bar you can choose to pin, unpin, float, and dock the Palette at various locations around the screen.

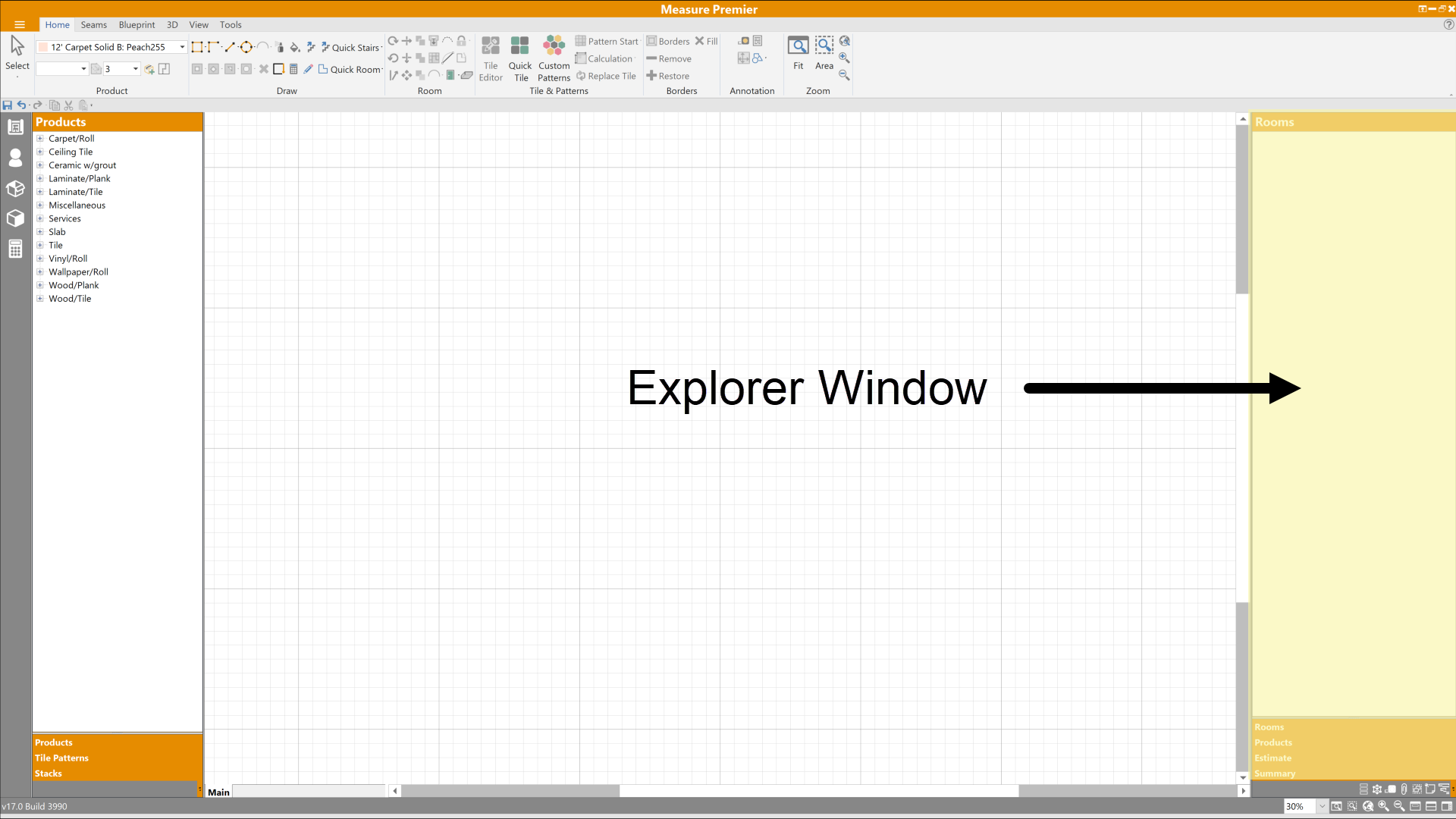

This window displays a customizable list of project data. By default, it contains the names of all rooms on the project. The buttons below the main window can be used to select other criteria by which the data is grouped, such as by products or room measurements.
This bar is customizable. By right-clicking the bar you can choose to pin, unpin, float, and dock the Explorer Window at various locations around the screen.
Rooms on the drawing can be selected by left-clicking them in this window. If data in the Explorer Window is being sorted according to product names, left-click a product and all rooms in which that product is being used will be selected.

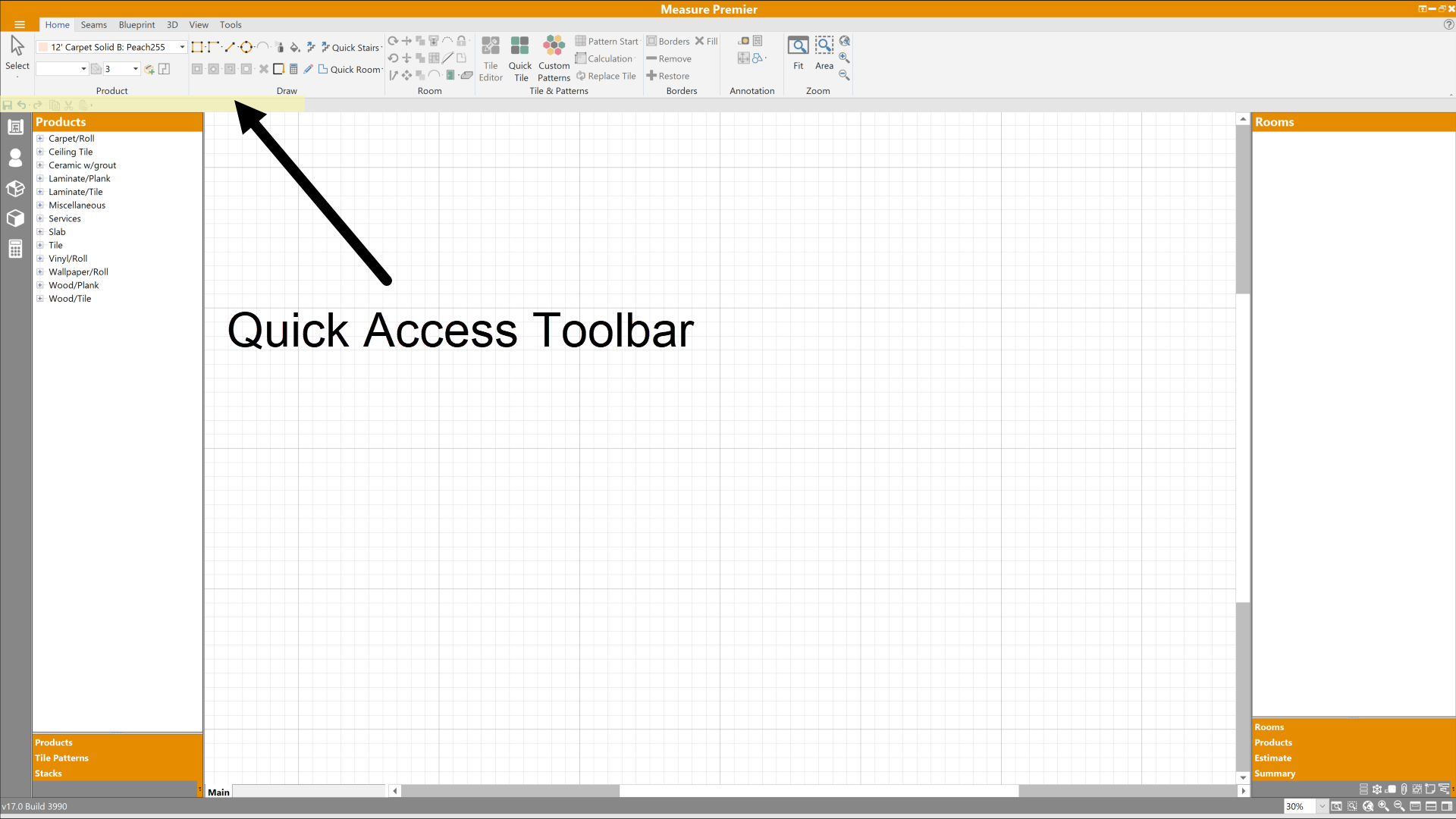

Customizable toolbar to which commonly used tools can be assigned.
See: Quick Access Toolbar
