How to Customize the Room Plan Report

The Room Plan focuses on the overall layout of the project and serves as a guide for where material is being used.

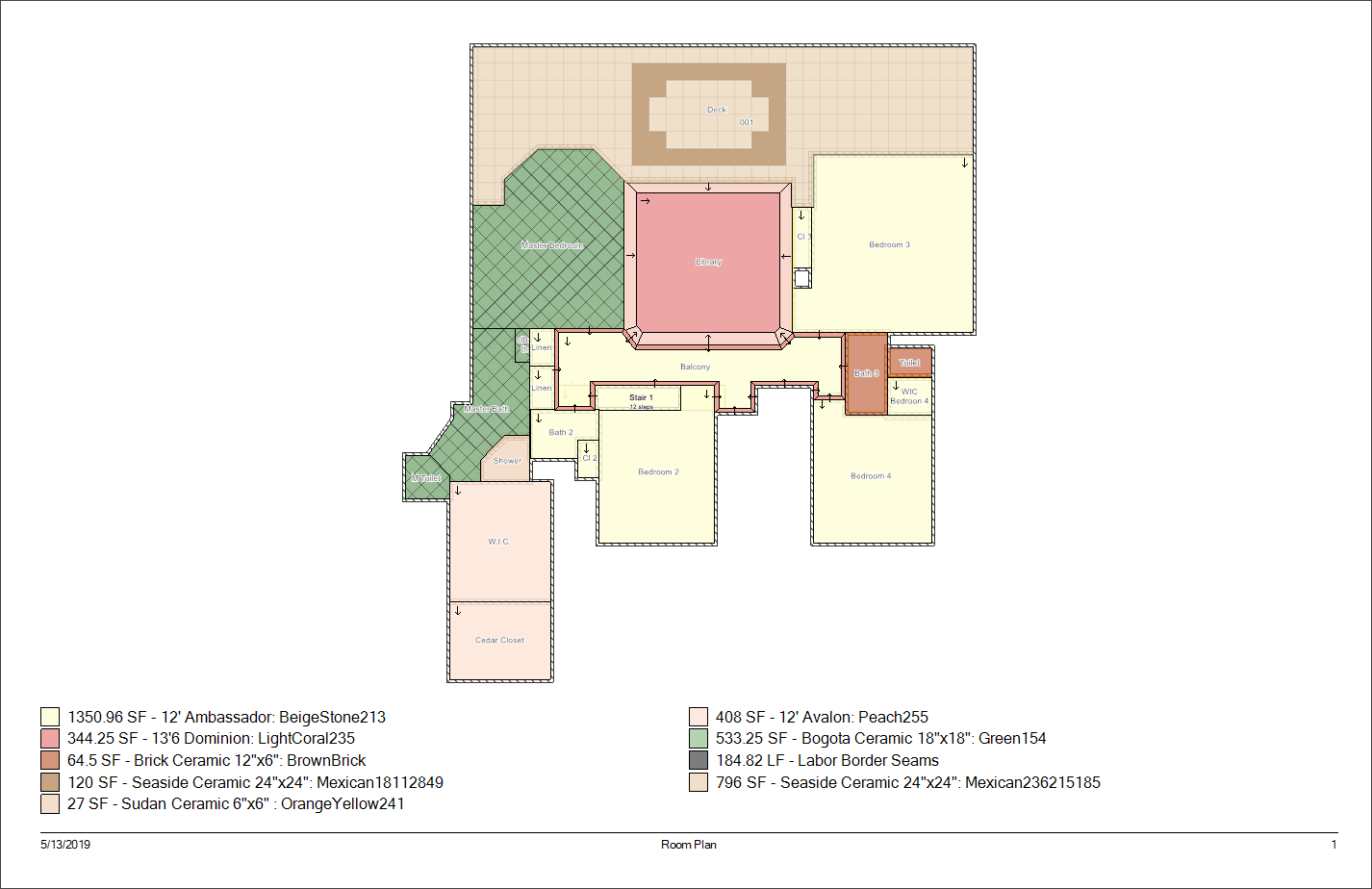

Sample Report:

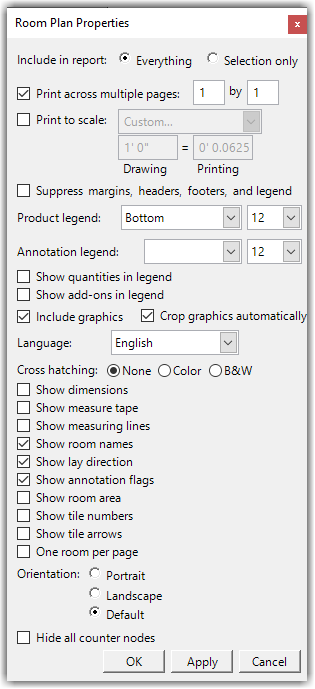

Report Options


Include in Report
Everything/Selection Only
Indicate whether to have the entire project included in the report or only what has been selected in the drawing area.
Print Across Multiple Pages
Spread the report across multiple pages. (i.e. 1:1, 1:2, 2:2 etc.) Selecting this option will override the option for Print to Scale.
Print to Scale
Choose from a list of scale options or set a custom scale for the printout
Suppress margins, headers, footers, and legends
Print the room play without margins, headers, footers and legends

Product Legend Settings

Product Legend
Change the position and font size of the product legend.
Show Quantities in Legend
Display total quantities of each product in the legend.
Show Add-ons in Legend
Include add-ons in the product legend.

Graphics Options

Include Graphics
Include any underlaying blueprint in the report printout
Crop Graphics Automatically
Crop the blueprint graphics to include only the portion that has been traced over is visible.
Cross Hatching
If cross hatching has been enabled for products, this option allows it to be printed in place of the products color.

Annotations and Measurement Displays

Show Dimensions
Display measurements of each room.
Show Measure Tape
Display the blue measurement box that appears when the Measuring Line annotation tool is in use. By default this option will be unchecked.
Show Measuring Lines
Display the line that appears when the Add Measuring Line annotation tool is in use. By default this option will be unchecked.
Show Room Names
Display room names.
Show Lay Direction
Display an arrow in each room to indicate product lay direction.
Show Annotation Flags
If a room has notes or add-ons, then this option will display icons in the corner of the room to indicate these annotations.
Show Room Area
Display the area of each room next to the room name.
Show Tile Numbers
Display numbers on partial tiles to indicate where they are being reused.
Show Tile Arrows
Display lay direction arrows for each tile.
Hide All Counter Node
Choose to display or not display counter nodes that are in use on the drawing.

Page Display Options

One Room Per Page
Each room in the project will be printed on a different page.
Choose a print orientation for the plan.

 Note: "Default" will print the plan in whichever orientation is set in the "Printer" panel. Choosing "Portrait" or "Landscape" in this window will override that setting for this report only.
