Slab Cuts Plan

Sarah Swinney

April 08, 2024 17:37

The Slab Cuts plan details the placements of cuts for slab/hard surface material.

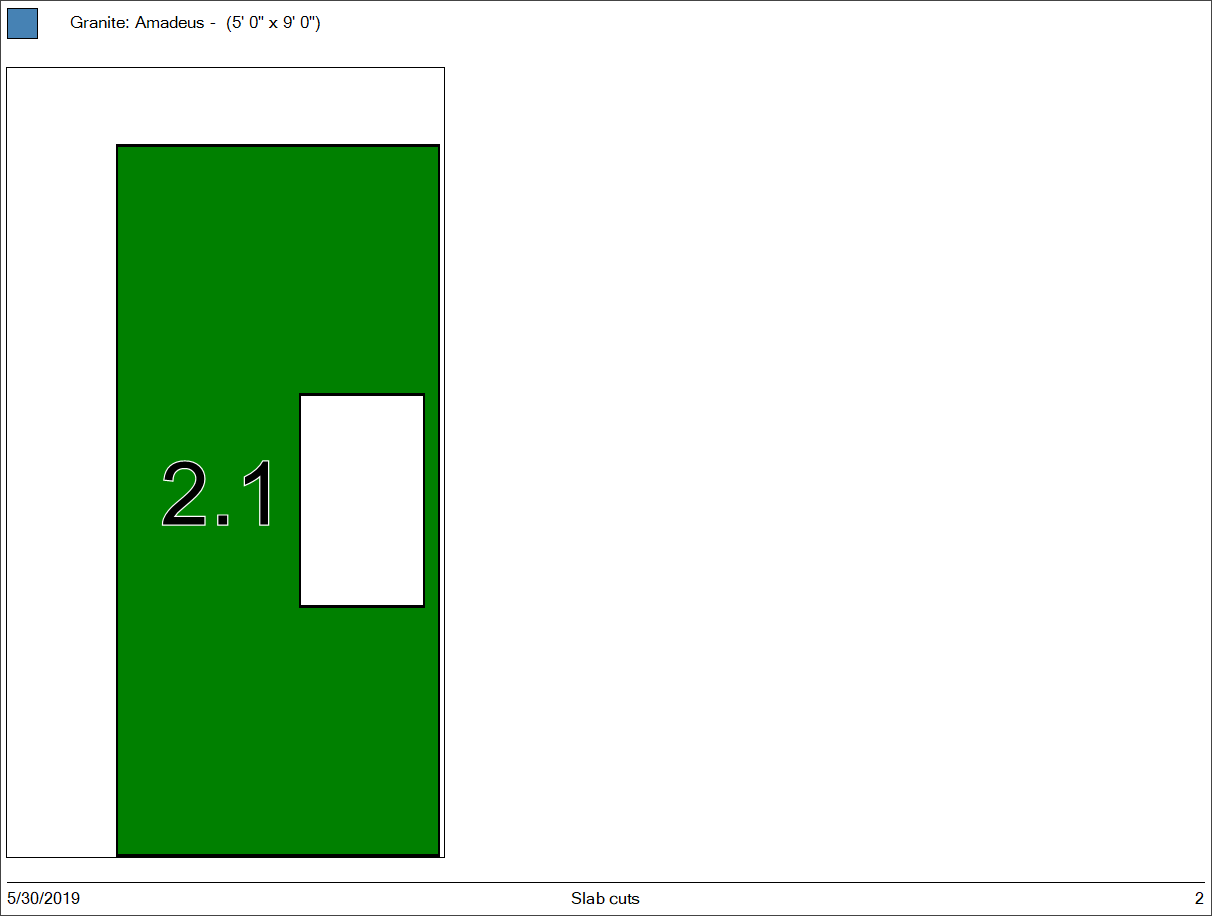

Sample Plan:

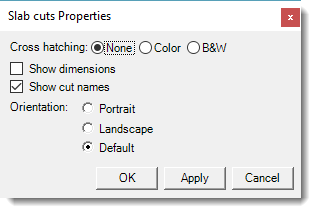

Plan Options

Cross Hatching: If cross hatching has been enabled for products, this option allows it to be printed in place of the products color.
Show Dimensions: Display measurements of cuts.
Show Cut Names: Display the name of each cut on the diagram.
Orientation: Choose a print orientation for the plan.; Note: "Default" will print the plan in whichever orientation is set in the "Printer" panel. Choosing "Portrait" or "Landscape" in this window will override that setting for this report only.
