How to Connect a Leica Disto to Measure Mobile

Measure Mobile requires that the device the Disto will be paired with is Bluetooth Smart compatible. It currently supports the following Leica Distos:

  • e7100i
  • D110
  • e7500i
  • D1
  • D2
  • X3 (iOS and Android only)

For a complete list of compatible Disto devices see the article Choosing the Right Bluetooth Disto.




How To:

  1. From the drawing screen add a new line draw, quick room, or select the wall handle of an existing room to bring up the keypad on the right side of the screen.

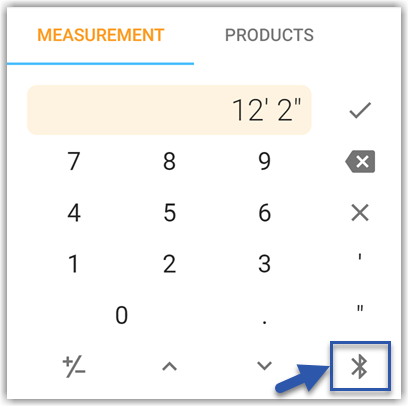

  2. Make sure that Bluetooth has been enabled on your device as well as on the Disto. Press the Bluetooth icon on the keypad in Measure Mobile, then press "Search for Disto".
  3. Select the Disto listed on the screen. When the word 'ready' is displayed the Disto is connected.



Tip: If your Disto doesn't appear after you've selected "search for Disto", make sure that your Bluetooth is turned on by pressing and holding down the blue Bluetooth icon on the Disto.
