Closing Rooms

The Close Room tool automatically draws the last wall in a room at any angle necessary.


Use this tool with any of the drawing tools to quickly draw the last wall of a room.

How To:

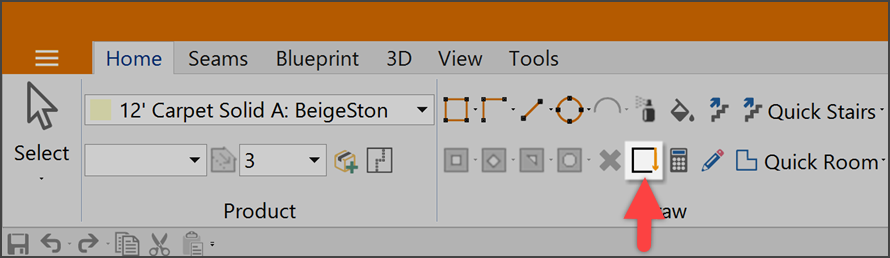

  1. While drawing rooms with the Keypad or one of the Drawing Tools click on the Close Room button in the Edge group located under the Home Tab of the Ribbon bar. Alternatively, you can press Ctrl + Shift + C on your keyboard to have Measure draw the final wall of the room.

Tips:

  • When drawing non-rectangular rooms, you may also double-click while drawing the last wall to close the room.
  • Keyboard Shortcut: Ctrl + Shift + C
