Add Curve Segment – Measure Flooring

Use this tool to add a curve while you are drawing a room. To add a curve to a room that has already been drawn, use the Make Curve tool.

Using an older version of Measure?

1. While drawing a room, define the the side of the room that you would like to apply a curve to. Curves are always added on to the last side drawn.

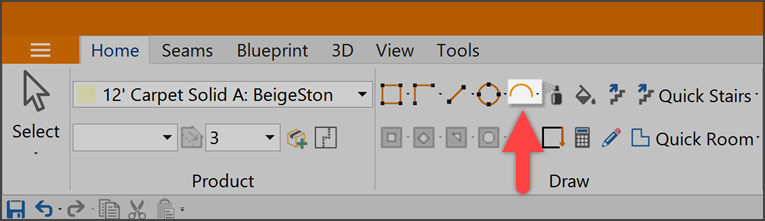

2. Select the Add Curve Segment tool.

Hold the "r" key when moving the mouse to select the tool. This will lock the screen from scrolling.

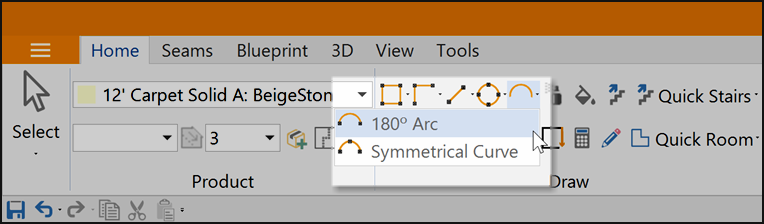

3. Select either the 180° Arc or Symmetrical Curve

4. Plot the point of your curve.

For more information see the "Add Curve Segment" chapter of the video tutorial above.

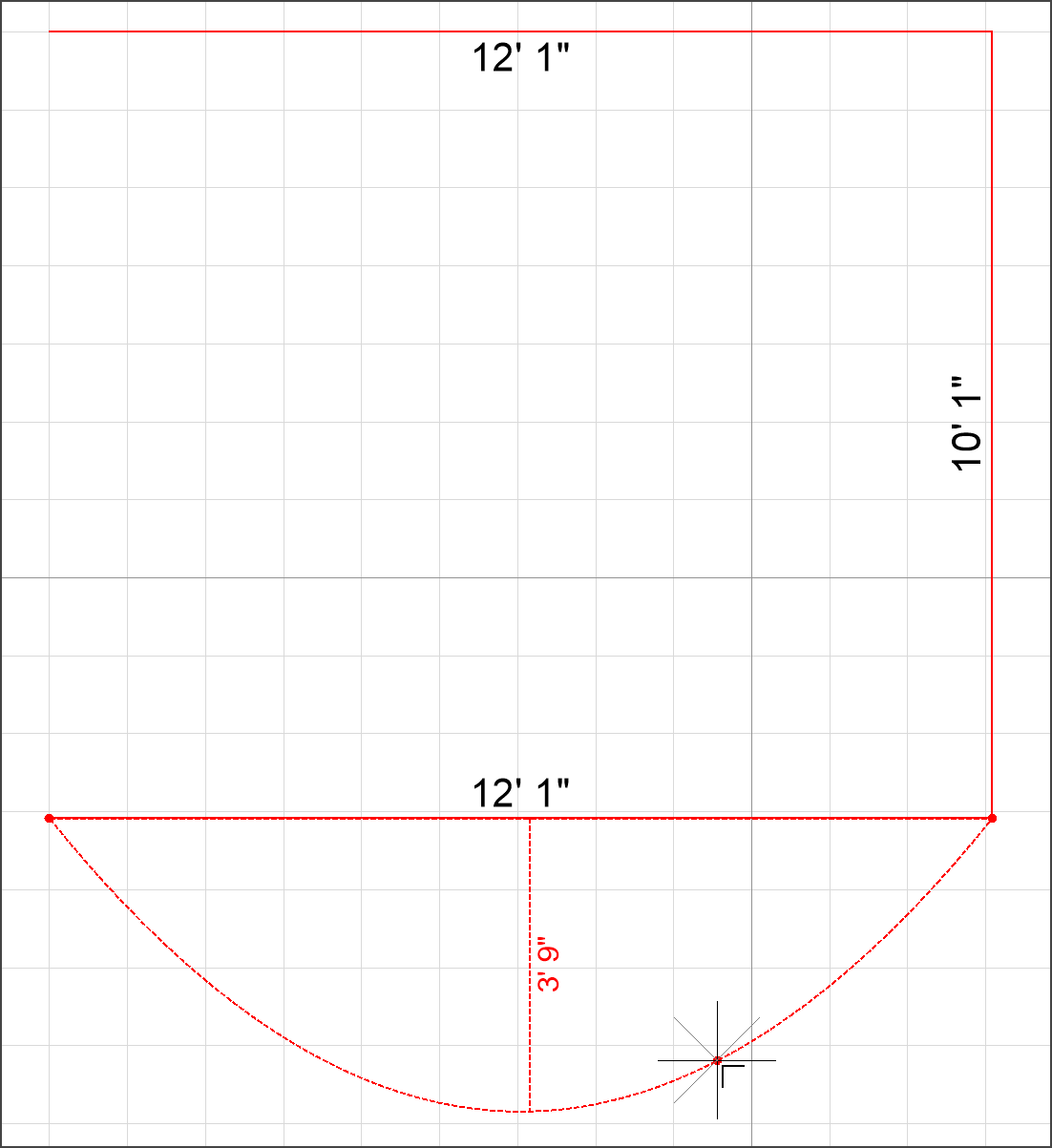

180 Arc

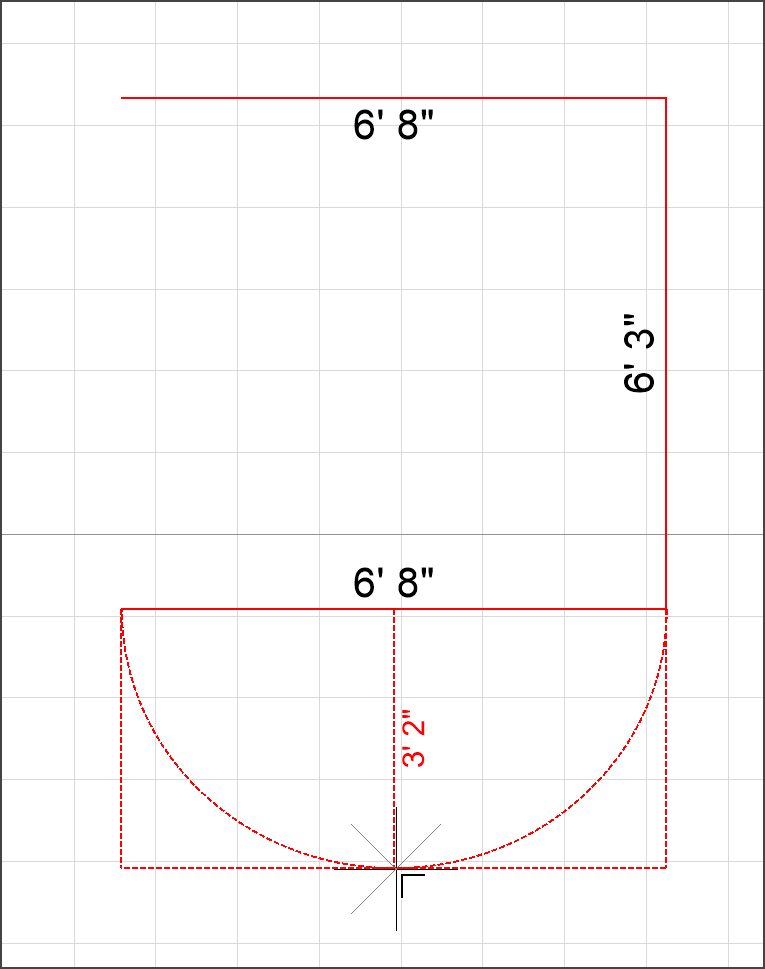

Symmetrical Curve

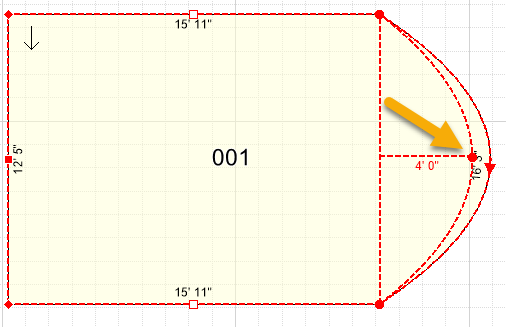

5. After you have finished drawing the room, the curve segment can be edited by dragging its handle.
